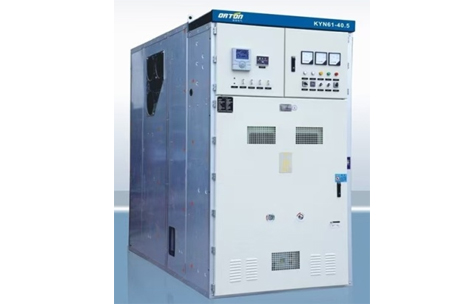

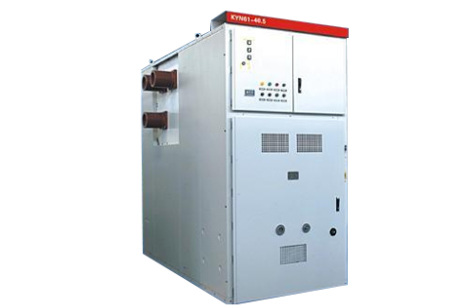

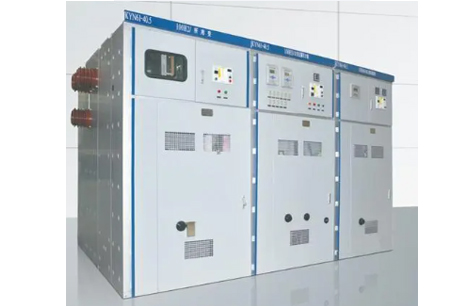

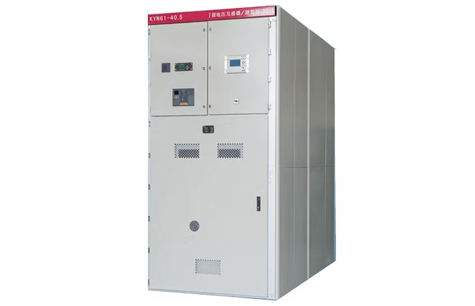

KYN61-40.5(Z) Metalclad AC Enclosed Switchgear, Withdrawable Type

KYN61-40.5(Z) armored removable AC metal-enclosed switchgear (hereinafter referred to as switchgear) is a three-phase AC 50Hz, rated voltage 40.5kv indoor complete power distribution device. It is used for receiving and distributing electric energy in power plants, substations and industrial and mining enterprises. It has functions such as control, protection and detection of circuits, and can also be used in places with frequent operations. This switchgear complies with GB/T11022-口, GB3906-□ and DL404-□ standards.

Main features

△ The cabinet structure adopts assembly type, and the circuit breaker adopts trolley floor-standing structure;

△ It is equipped with a new type of composite insulation vacuum circuit breaker, which has the characteristics of good interchangeability and simple replacement;

△ The trolley frame is equipped with a screw nut propulsion mechanism, which can easily move the trolley and prevent damage to the propulsion structure due to misoperation;△ All operations can be performed when the cabinet door is closed;

△ The interlocking between the main switch, trolley and switch cabinet door adopts a mandatory mechanical locking method to meet the "five protection" function;

△ The cable room has ample space and can connect multiple cables;

△ The fast grounding switch is used for grounding and loop short circuit;

△ The shell protection level is IP3X, and the protection level is IP2X when the trolley room door is open;

△ The product complies with GB3906-口, DL404-囗 and refers to the international IEC60298 standard.

Usage environment

△ Ambient temperature: upper limit +40°C, and the average value measured within 24 hours does not exceed 35°C, lower limit -10°C.
△ Altitude: not more than 1000m.
△ Relative humidity: daily average value is not more than 85% (at +25°C).
△ Earthquake intensity: not more than 8 degrees.
△ Water vapor pressure: daily average value does not exceed 2.2kPa, monthly average value does not exceed 1.8kPa.
△ Surrounding environment: no fire, explosion hazard, severe pollution, chemical corrosion and severe vibration.

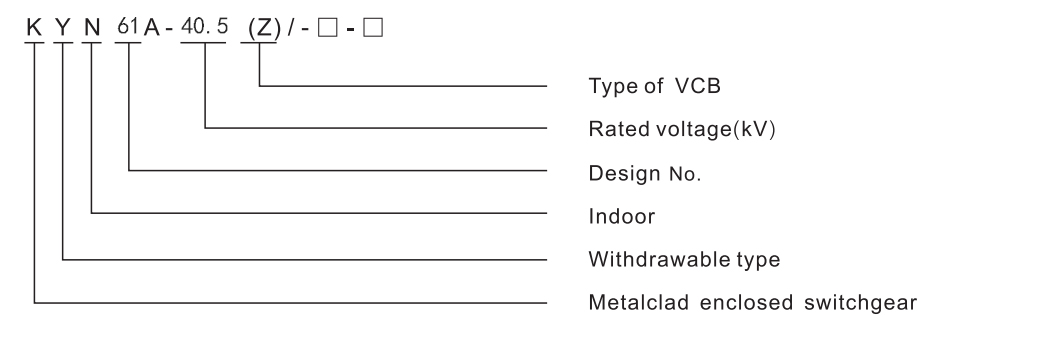

Model and meaning

Technical Parameter
Structural characteristics

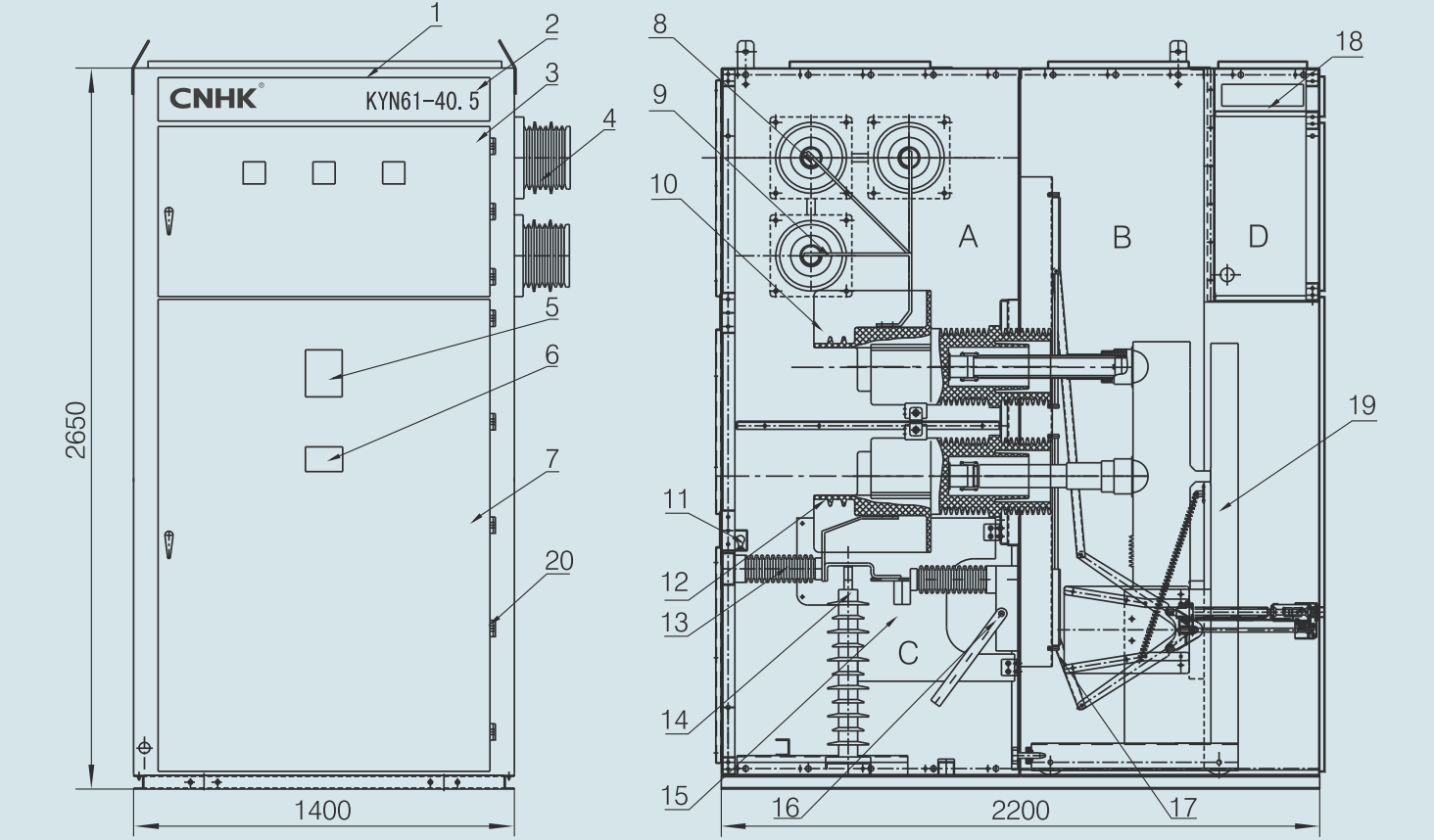

Structural diagram
Configuration diagram

Technical Parameter

Main Technical Parameter of switchgear KYN61-40.5

Item	Unit	Data
Rated Voltage	kV	33/35
Highest working voltage	kV	40.5
Rated 1min power frequency withstand voltage	kV	95
Rated Lighting impulse withstand voltage( peak)	kV	185
Rated frequency	Hz	50/60Hz
Rated current of circuit breaker	A	1250,1600,2000
Rated current of main bus	A	1250,1600,2000
Rated current of branch bus	A	1250,1600
Rated short time withstand current	kA	20/25/31.5
Rated short time withstand current( peak)	kA	50/63/80
Rated short circuit continuous time	S	4
Protection Class		IP4X
Weight	kg
Dimension	mm

Main Technical Parameter of Vacuum Circuit Breaker

Item		Unit	Data of VS1-40.5
Rated Voltage		kV	40.5
Rated 1min power frequency withstand voltage		kV	95
Rated Lighting impulse withstand voltage( peak)		kV	185
Rated frequency		Hz	50/60Hz
Rated current of circuit breaker		A	1250,1600,2000
Rated short time withstand current		kA	20/25/31.5
Rated short time withstand current( peak)		kA	50/63/80
Rated operation sequence			O—0.3s—CO—180s—CO
Mechanical Life		Times	10000
Opening time		ms	50-100
Closing time		ms	30-60
Arcing time		ms	15
Main Technical Parameter of Spring Operation Mechanism
Item		Unit	Data of VS1-40.5
Rated operation voltage	Opening coil	V	DC220/110,AC220/110
	Closing coil
Rated operation current	Opening coil	A	0.96(220V),1.05(110V)
	Closing coil
Energy storage motor		W	230
Rated voltage of energy Storage Motor		V	DC220/110,AC220/110
Time for storage		S	≤12
