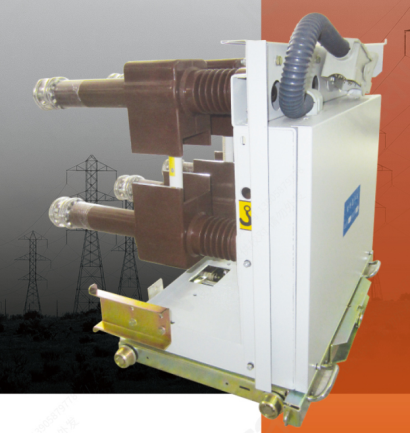

Trolley/Weighing Trolley VS1-PT/VS1-JL

The operation is convenient, simple and reliable. The circuit breaker adopts an integrated design of the operating mechanism and the circuit breaker body. It can be used as a fixed installation unit or equipped with a special mechanism to form a trolley unit.


  • Usage environment

    Ambient air temperature: upper limit +40℃ lower limit -15℃;

    Altitude: ≤2000m (if the altitude needs to be increased, the rated insulation level will be increased accordingly);

    Amplitude: earthquake intensity does not exceed 8 degrees;

    The daily average relative humidity of the air is not more than 95%, and the monthly average is not more than 90%;

    There is no fire and explosion danger, serious pollution, chemical corrosion and severe vibration.


  • Model and meaning

Technical Parameter

No.

Device Name

Rated current

Matching static contact size (mm)

1

PT Trolley

630-1250

Φ35-Φ49

2

Weighing Trolley


Structural characteristics

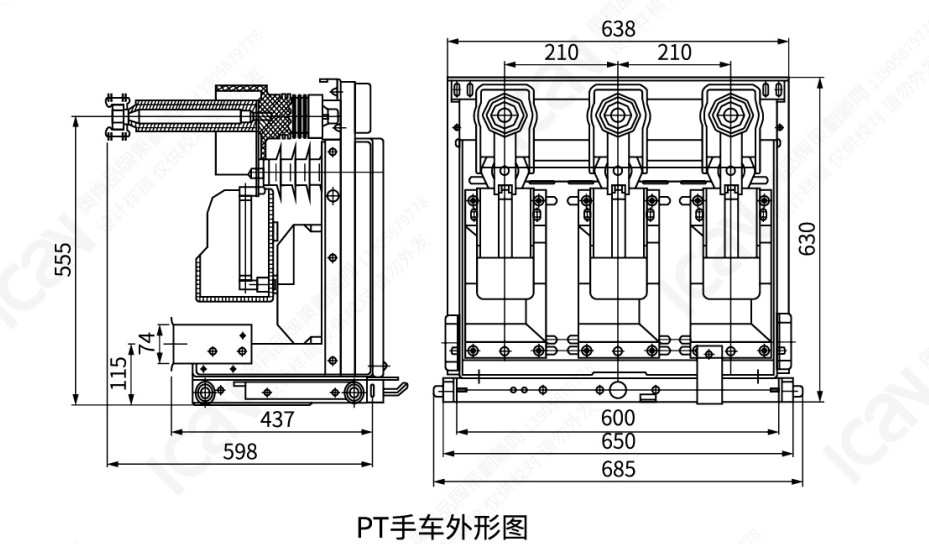

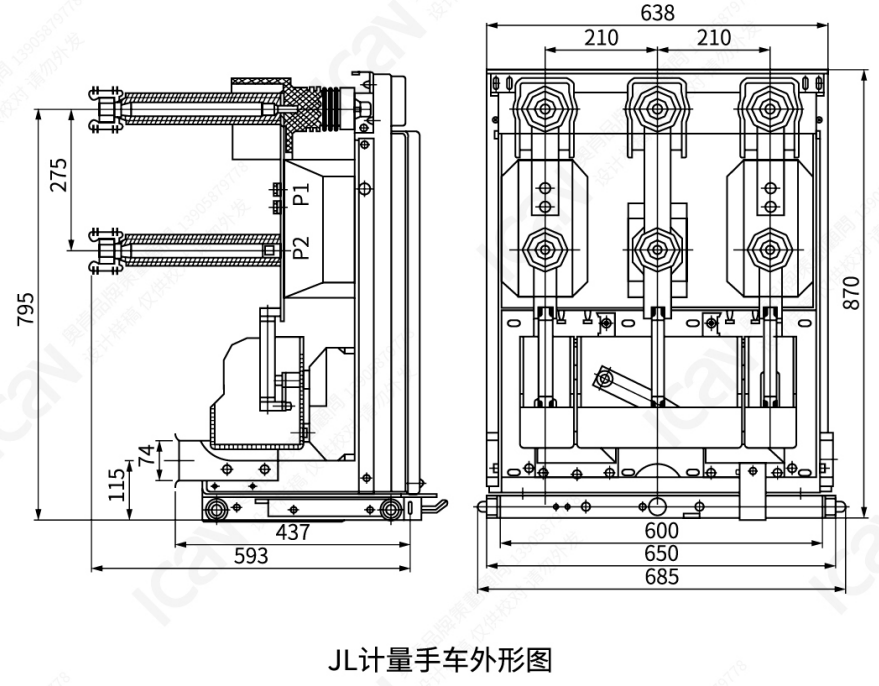

Structural diagram




Configuration diagram
