Automatic transfer switch HKSZ12

△ Ensure uninterrupted operation of critical power.

When one power supply has over-voltage, under-voltage or phase failure, it automatically switches to another power supply or starts the generator. It is suitable for hospitals, shopping malls, banks, hotels, high-rise buildings and firefighting, which are important places where long-term power outages and uninterrupted power supply are not allowed.

△ Complete automatic power supply conversion system.

Equipped with three conversion modes of automatic transfer and automatic recovery, automatic transfer without automatic recovery, and mutual backup, and two operating modes of power grid-power grid and power grid-generator are available to meet different power conversion needs.

△ Intelligent.

With communication interface, built-in RS485, MODBUS-RTU and meter 1997 protocol two communication protocols, data upload, remote data configuration and status monitoring can be realized, remote signaling, telemetry, remote control, remote adjustment functions can be realized, remote viewing function can also be realized with intelligent power distribution system,

△ Safe and reliable, with fire linkage function.

When a fire occurs in a non-fire load, the fire control center sends a signal to the intelligent controller to cut off the dual power supply and ensure that the fire load is powered off.

Complies with standards: GB/T14048.11, IEC60947-6-1

Usage environment

△The upper limit of the ambient air temperature shall not exceed +40℃, the lower limit shall not be lower than -50℃, and the average value of 24h shall not exceed +35℃;
△The relative humidity of the atmosphere shall not exceed 50% when the ambient air temperature is +40℃, and higher relative humidity can be achieved at lower temperatures, for example: 90% at 20℃:
△The installation site shall not exceed 2000m above sea level;
△The installation category is IV
△This product should be installed in a place without severe vibration, impact and corrosion:
△When the above conditions cannot be met, the user and the manufacturer shall negotiate to resolve the issue.

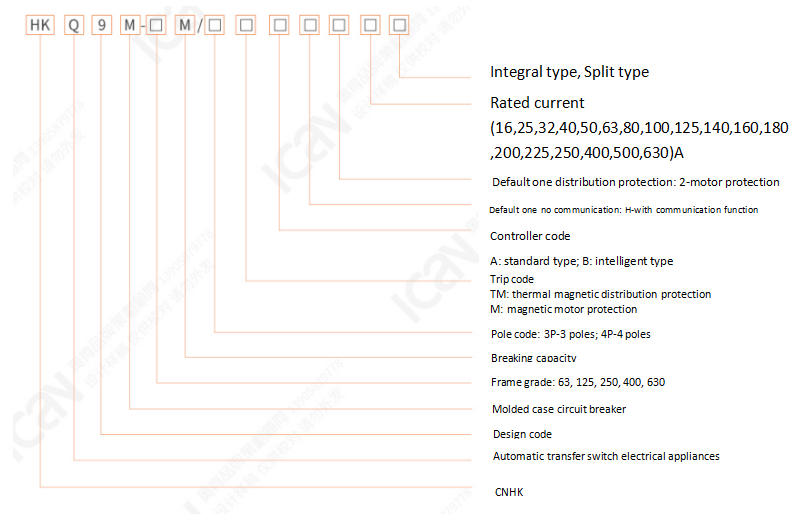

Model and meaning

Technical Parameter

Frame grade	63	125	250	400	630
Stable working current (A)	16,25,32, 40,50,63	16,25,63, 40,50,63,80, 100,125	100,125,140 160,180,200 225,250	225,250, 315,350,400	400,500,630
Rated impulse withstand voltage (kV)	8kV
Rated working voltage (V)	400
Rated short-circuit making capacity (kA)	52.5	105	105	105	105
Rated short-circuit breaking capacity (kA)	25	50	50	50	50
Use category	AC-33iB
Electrical appliance category	Grade CB
Certification	CCC
