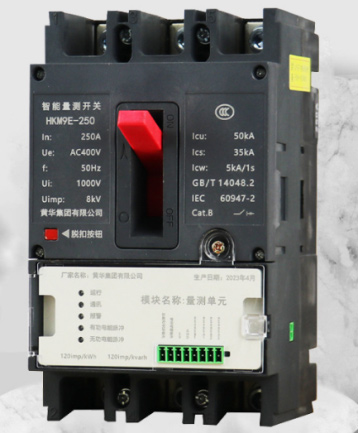

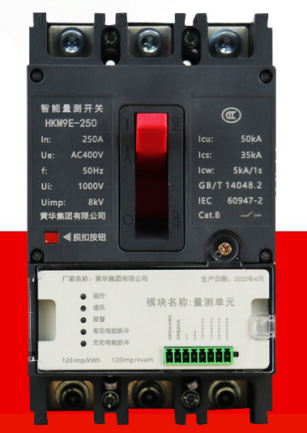

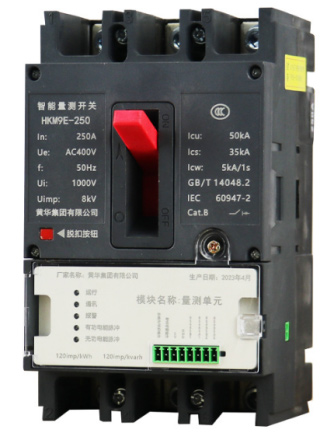

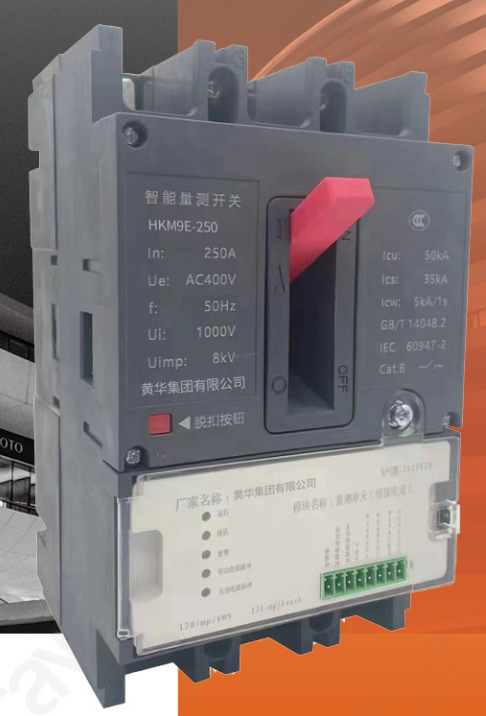

IOT intelligent measurement switch HKM9E

This series of IoT intelligent measuring switches (referred to as measuring switches) are suitable for three-phase four-wire distribution networks with AC 50Hz, rated current 250A (adjustable from 100A to 250A), rated insulation voltage 1000V, and rated working voltage 400V, and neutral point direct grounding.

This measuring switch (characteristic current) has multiple IoT sensing functions such as HPLC communication, high-precision AC sampling, power supply relationship topology identification, meter box management, power theft warning, power outage event reporting, line loss analysis and judgment, terminal temperature detection, and automatic fault diagnosis. It has overload long delay, short circuit short delay, short circuit instantaneous, over-voltage and under-voltage and phase failure protection functions. Various protection functions protect the lines and power equipment. The detection and monitoring of the load end can reduce the operation and maintenance costs of the power grid and provide necessary data for future energy efficiency systems.


  • Usage environment

    The altitude of the installation site is 2000m;

    The ambient temperature is -35~+70; the average value of 24h does not exceed +35;

    Relative humidity: +23should not be higher than 83%; +40should not be higher than 93%.

    The product can withstand the influence of humid air, salt spray, oil mist, and mold;

    The installation category of the measuring switch (characteristic current) connected to the main circuit is: Class III (distribution and control level),

    The installation category of the measuring switch (characteristic current) not connected to the main circuit is: Class II (load level);

    Pollution level: Level 3;

    Protection level: IP20;

    The product is installed in a medium without explosion hazard, where there is no gas and conductive dust that can corrode metal and destroy insulation, and avoid using it in places invaded by rain and snow;

    When the user's use conditions are more severe than the above, the manufacturer should be consulted.


  • Model and meaning


Technical Parameter

Number of poles


Wiring method


Rated working voltage Ue (V)

AC400V

Rated current In (A)

125/160/200/250

Rated insulation voltage Ui (V)

100

Rated impulse withstand voltage Uimp (kV)

8

Rated operating short-circuit breaking capacity Ies (kA)

35

Rated ultimate short-circuit breaking capacity Icu (kA)

50

lcw (kA)

5/1s

Use category

A

Mechanical life

8000

Electrical life

5000

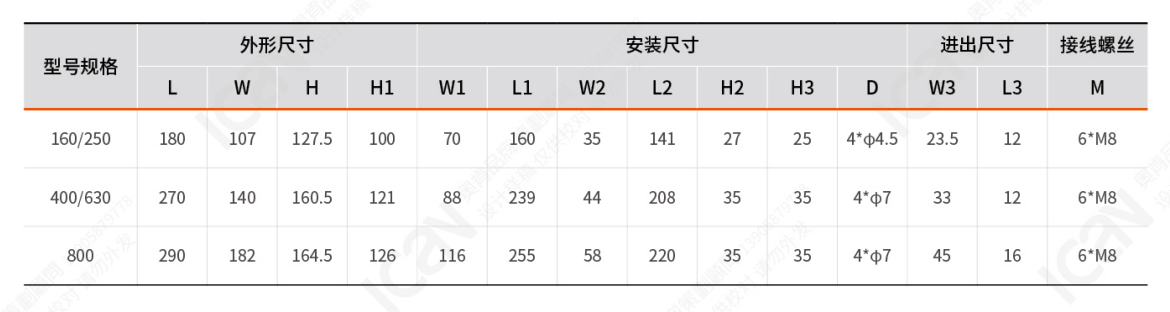

Dimensions (m) (length x width x height)

180*107*100

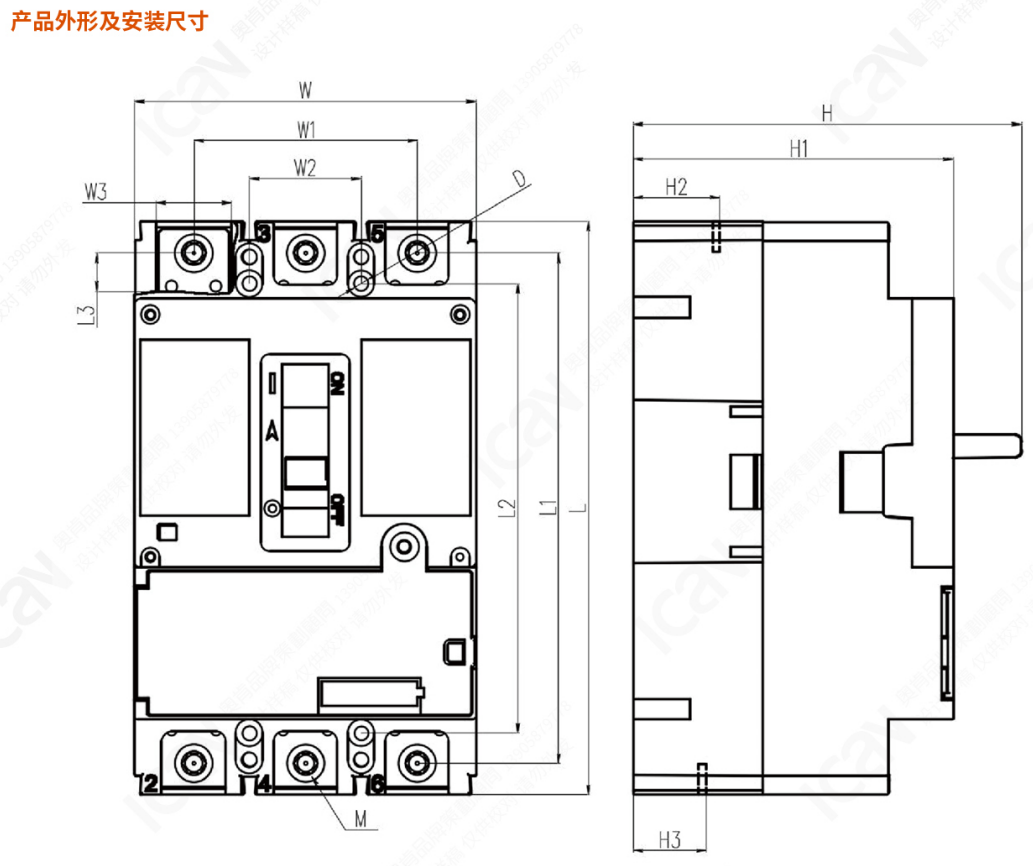

Installation dimensions

141*35(14XΦ4.5 hole)


Structural characteristics
Structural diagram



Configuration diagram
