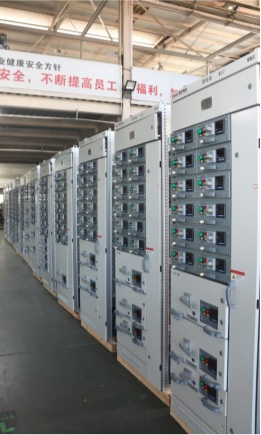

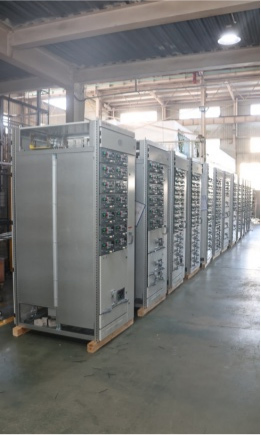

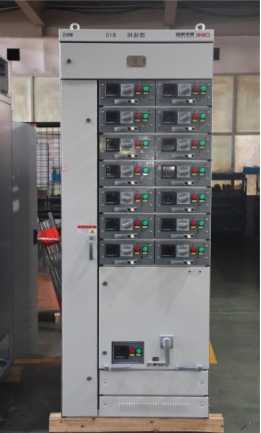

HMNS Low-voltage Switchgear Panel, Withdrawable Type

HMNS low-voltage withdrawable switchgear is a new generation of low-voltage switchgear developed by Huanghua Group according to the market demand. The technical standard of the product meets the requirements of IEC439 ‘Low-voltage switchgear and controlgear assemblies’, GB7251 ‘Low-voltage switchgear and controlgear assembliesPart 1:General rules’ and other standards.

HMNS type low-voltage withdrawable switchgear is suitable for power plants, substations, petrochemical, metallurgy, steel rolling, light industry, textile and other factories and mines, and residential communities, high-rise buildings and other places, as the AC 50 ~ 60Hz, rated working voltage AC 660V and the following power system power distribution equipment, power conversion, distribution and control of the use.



  • Usage environment

    △ The ambient air temperature is not higher than +40℃, not lower than -5℃, and its average temperature within 24h is not higher than +35℃;

    △ Atmospheric conditions: clean air, relative humidity does not exceed 50% when the maximum temperature is +40℃, and higher relative humidity is allowed at lower temperatures, such as 90% at +20℃, but temperature changes should be taken into account, and condensation may occur occasionally;

    △ Altitude does not exceed 2000m;

    △ This device is suitable for transportation and storage processes at the following temperatures: between -25℃ and +55℃. In a short period of time (not more than 24h), it can reach +70℃. The device should not suffer any irreversible damage at these extreme temperatures, and should work normally under the above conditions;

    △ If the above conditions of use cannot be met, the user and the manufacturer should negotiate to resolve;

    △ When this device is used on offshore oil drilling platforms and nuclear power plants, a separate technical agreement should be signed.

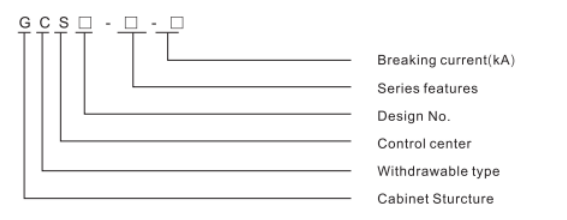

  • Model and meaning


Technical Parameter

Electrical Performance

Unit

Data

Rated insulation voltage

V

660

Rated working voltage

V

380, 660

Maximum working current of main busbar

A

5000

Rated withstand current of main busbar

kA

100

Rated peak withstand current of main bus

kA

220

Distribution busbar (vertical busbar) Maximum working current

A

1000

Distribution Busbar ( Vertical Busbar ) Peak Current :

kA

80

Standard

kA

105 (max)

Reinforced type

kA

176 (max)

(2) Protection class



Conforms to IEC529 and DIN40050 standards.



IP30 Solid protection for φ2.5mm or larger



IP40 Protection against solids larger than φ1.0mm



IP54 Protection against dust and splash in any direction



(Consult with the manufacturer when ordering the IP54 protection class.)




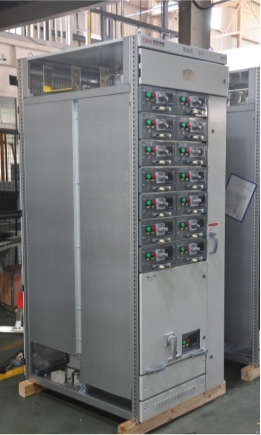

Structural characteristics

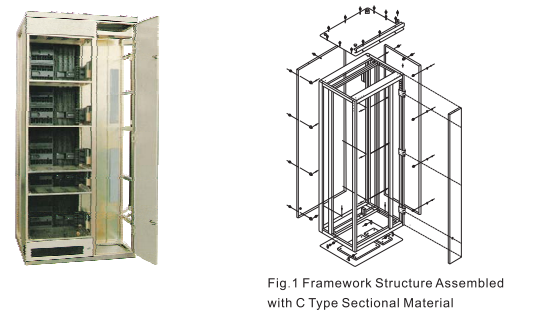

开关柜柜体基本结构是由C型型材料装配组成。C型材是以 E=25mm为模数安装孔的钢板弯制而成,企部柜架及内层板都作镀锌纯化处理。四周门板,侧板则作高压静电喷塑。柜体基本结构见图1所示;柜体基本尺寸如表12所示;


Structural diagram

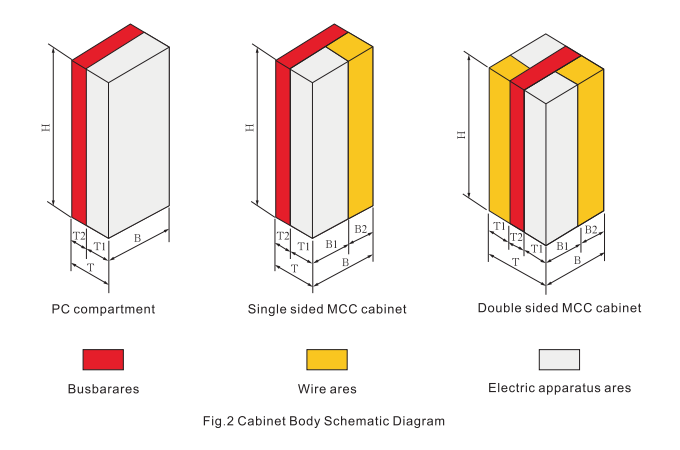

Configuration diagram
