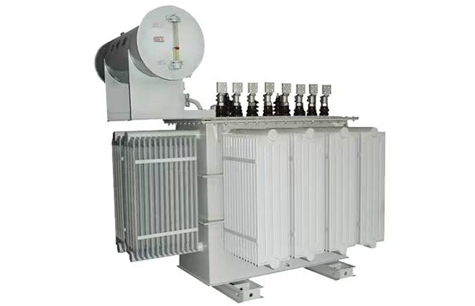

Rectifier transformer SFFIO-50000/15.75

Rectifier transformer is a transformer specially used for rectifier system.

Function

Supply appropriate voltage to rectifier system;Reduce the pollution to the power grid caused by waveform distortion caused by rectifier system.


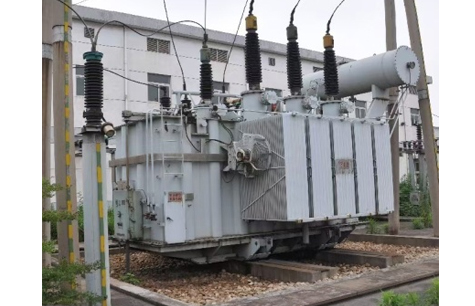

  • Usage environment

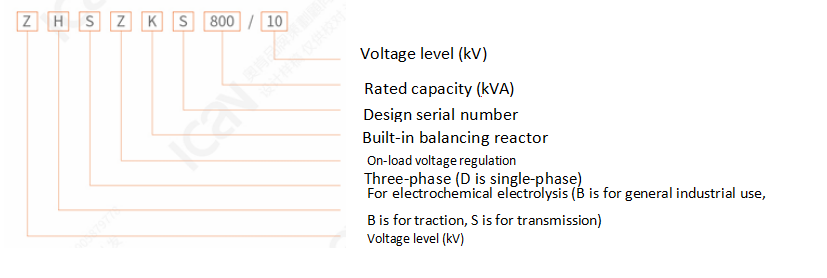

  • Model and meaning


Technical Parameter

Product parameters

Rated capacity: 50000/25000~25000kVA;

Rated voltage: 15.75/10.5~10.5kV;

Rated current: 1833/1375~1375A;

Rated frequency: 50Hz;

Number of phases: 3 phases;

Tap range: 15.75±2x25%/10.5~10.5KV;Connection group number: Dd0;

Cooling method: ONAN/ONAF:

Insulation heat resistance grade: A;

Insulation level: LI125 AC55/LI105 AC45-LI105 AC45.

Test items and results

Insulation resistance, absorption ratio and dielectric loss measurement t=33

Absorption ratio

Dielectric loss measurement (%)

Insulation resistance(mΩ)

H.V. - L.V. and ground

1.36

H.V. - L.V. and ground

0.48

H.V. - L.V. and ground

2500

L.V. - H.V. and ground

1.42

L.V. - H.V. and ground

0.43

L.V. - H.V. and ground

2500

H.V. and L.V. - ground

1.39

H.V. and L.V. - ground

0.46

H.V. and L.V. - ground

2500





Core-ground

650

Voltage ratio measurement and connection number verification

H. V. Winding

L. V. Winding

Transformation ratio K

Voltage ratio deviation %

Link Group

Tap voltage

Voltage(kV)

Voltage(kV)

AB/ab

(right side/left side)

BC/bc

(right side/left side)

CA/ca

(right side/left side)

1

16.54


1.575

-0.20/-0.17

-0.20/-0.17

-0.20/-0.17


2

16.145


1.538

-0.09/-0.05

-0.09/-0.05

-0.09/-0.05


3

15.75

10.5

1.5

0.05/0.01

0.05/0.01

0.05/0.01

D, d0-d0

4

15.355


1.462

0.16/0.18

0.16/0.18

0.16/0.18


5

14.96


1.425

0.27/0.27

0.27/0.27

0.27/0.27


Winding resistance measurement t=33

High voltage winding phase order

AB

AC

BC

Unbalance rate%




1

0.01452

0.01452

0.01456

0.3




2

0.01434

0.01430

0.01423

0.8




3

0.01389

0.01394

0.01392

0.4




4

0.01354

0.01361

0.01360

0.5




5

0.01317

0.01321

0.01321

0.3




L. V. Winding

ab

(right side/left side)

bc

(right side/left side)

ac

(right side/left side)

Unbalance rate %

0.009459/0.009302

0.009448/0.009337

0.00948/0.009264

0.1/0.8

Externally applied pressure test

Pressure point

Test voltage(kV)

Test time(S)

Results

H.V. - Ground  and

L.V.

55

60

Passed

L. V. - Ground  and

H.V.

45

60

Induction withstand voltage test

Applied voltage(kV)

Induced voltage(kV)

Induction multiple %

Frequency test(Hz)

Test time(S)

Results

L.V.

H.V.

21

31.5

200

200

30

Passed

No-load current and no-load loss measurement

Average voltage (kV)

Effective value voltage (kV)

No-load current

No-load loss(kW)

(A)

%

Measured value

Correction value

10.484

10.513

57.3

0.41

29.835

29.727



Short circuit impedance and load loss measurement t=75

Operation mode

Impedance voltage (%)

Load loss (kW)

High pressure-(low pressure 1- low pressure 2)

11.1

187.05

High pressure-low pressure 1

17.8

74.309

High pressure-low pressure 2

21.1

79.975

Low pressure 1- low pressure 2

39.5

22.137


Transformer oil test

Oil No. 25 # Dielectric strength 40 kV

Partial discharge test

Under 1.5 times the maximum phase voltage: 85PC

Noise level test distance

2m from the transformer body: 61dB

Sealing test

Test methods

Applied pressure (k Pa)

Test time(h)

Residual pressure(%)

Results

Static air pressure method

20

24

70





Structural characteristics

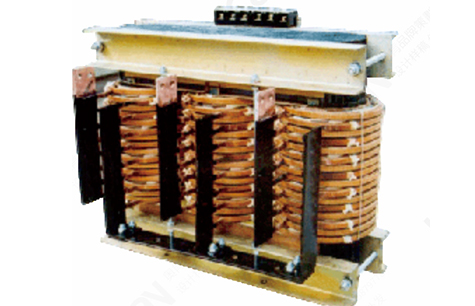

Structural diagram

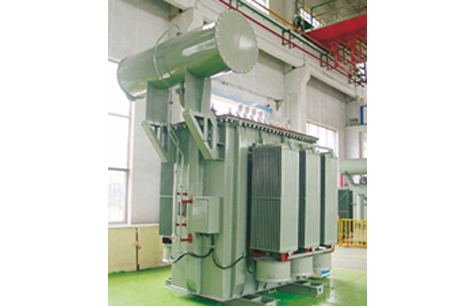

Configuration diagram
