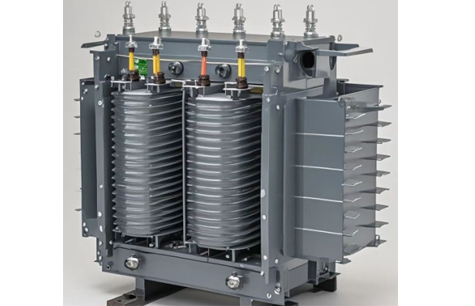

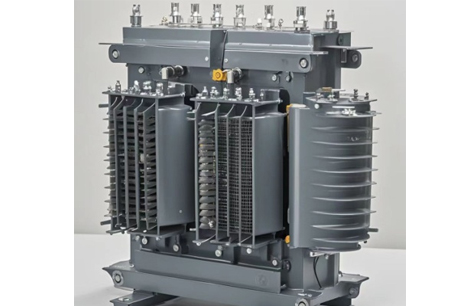

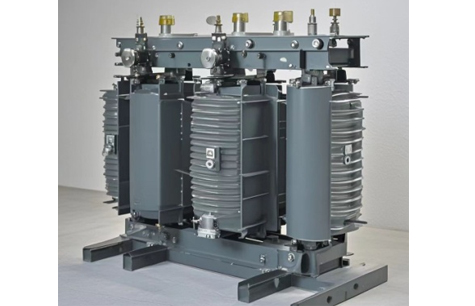

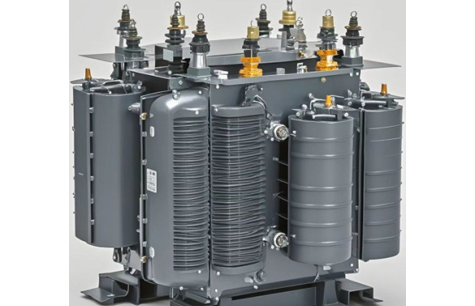

Resin-insulated dry-type transformers are the SC9, SCB9 series and SC10, SCB10 series of filler-insulated dry-type transformers developed independently by our company with the introduction of foreign advanced technology. Since the coil is wrapped in epoxy resin, it is flame-retardant, fire-proof, explosion-proof, maintenance-free, pollution-free, small in size, and can be directly installed in the load center. At the same time, the scientific and reasonable design and casting process make the product have smaller partial discharge, low noise, strong heat dissipation capacity, and can operate for a long time at 140% rated load under forced air cooling conditions. It is equipped with an intelligent temperature controller with fault alarm, over-temperature alarm, over-temperature tripping and black gate functions, and is connected to the computer through the RS485 serial interface for centralized monitoring and control.

Because our company's dry-type transformers have the above characteristics, they are widely used in power transmission and transformation systems, such as hotels, airports, high-rise buildings, commercial centers, residential areas and other important places, as well as subways, smelting power plants, ships, offshore drilling platforms and other harsh environments.
