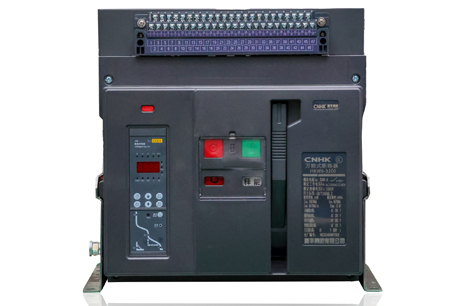

Intelligent universal low voltage circuit breaker HKW1

HKW1 series intelligent universal low-voltage circuit breakers (hereinafter referred to as circuit breakers) are suitable for distribution networks with AC 50HZ, rated voltage up to 660V (690V) and below, and rated current of 400A~6300A. They are used to distribute electric energy and protect lines and power equipment from overload, undervoltage, short circuit, single grounding and other faults. The circuit breaker has intelligent protection functions and precise selective protection, which can improve power supply reliability and avoid unnecessary power outages. At the same time, it has an open communication interface and can be used for four remote controls to meet the requirements of the control center and automation system. The circuit breaker does not have an intelligent release and sensor and can be used as an isolator, marked as _/X.

Rated working voltage: AC690V and below

Installation method: drawer type, fixed type

Intelligent controller: H type (for communication), M type (ordinary intelligent type), L type (economic type) Segment capacity: 80kA, 100kA (effective value)

Number of product poles: 3, 4

Tripping method: a variety of intelligent trippers, providing different functions

Product frame: 2000, 3200, 4000, 6300

Rated current: (400A) 630A_6300A product

Implementation standard: IEC60947-2, GB/T14048.2


  • Usage environment

    △ Ambient air temperature

    The upper limit shall not exceed +40℃, the lower limit shall not be lower than -5℃, and the average value within 24 hours shall not exceed +35℃;

    Note: For working conditions where the upper limit exceeds +40℃ or the lower limit is lower than -10℃ or -25℃, the user shall consult with our company.

    △ The altitude of the installation site shall not exceed 2000m

    △ Atmospheric conditions: The relative humidity of the atmosphere shall not exceed 50% when the ambient air temperature is +40℃, and higher relative humidity can be achieved at lower temperatures. The monthly average maximum relative humidity of the wettest month is 90%, and the average minimum temperature of the month is +25℃, and condensation on the surface of the product due to temperature changes shall be taken into account. If the temperature exceeds the regulations, the user shall consult with our company.

    △ Protection level: IP30

    △ Use category: Class B

    △ Installation category

    For circuit breakers and undervoltage releases with rated working voltages of 660V (690V) and below, the primary coil of the power transformer is used for installation category IV; the installation category of auxiliary circuits and control circuits is III.

    △ Installation conditions

    The circuit breaker should be installed according to the requirements of this manual, and the vertical inclination of the circuit breaker should not exceed 5°.

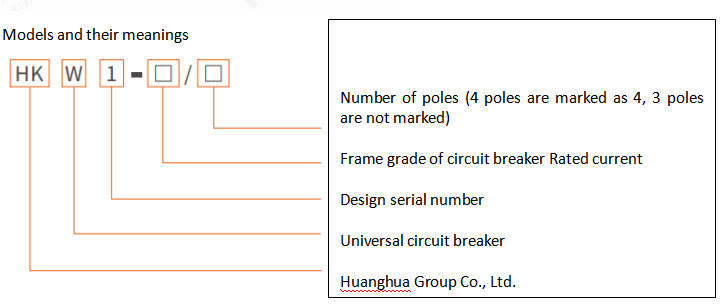

  • Model and meaning


Technical Parameter

△ The rated current of the circuit breaker is shown in Table 1

Frame grade Rated current Inm (A)

Rated current In (A)

2000

(400)630 8001000125016002000

3200

2000250029003200

4000

3200 36004000

6300

400050006300

△ The rated short-circuit breaking capacity and short-time withstand current of the circuit breaker are shown in Table 2. The arcing distance of the circuit breaker is zero 4 (i.e., there is no arcing outside the circuit breaker).

Frame grade Rated current Inm (A)


2000

3200

4000

6300

Rated ultimate short-circuit breaking capacity

lcu (kA) O-CO

400V

690V

80

50

100

50

100

50

100

50

Rated short-circuit making capacity

n xlcu(kA) COS

400V

690V

176/0.2

105/0.25

220/0.2

143/0.2

220/0.2

165/0.2

264/0.2

187/0.2

Rated operating short-circuit breaking capacity

lcs(kA)O-CO-CO

400V

690V

65

50

65

50

65

50

100

50

Rated short-time withstand current lcw

(kA) Delay 0.4s, O-CO

400V

690V

50

50

80

50

65/80(MCR)

50/65(MCR)

85/100(MCR)

65/75(MCR)

△ The maximum power consumption of the circuit breaker is 360W. The changes in the rated continuous current of the circuit breaker under different ambient temperatures are shown in Table 3.

Ambient temperature ℃

Rated Current

400A

630A

800A

1000A

1250A

1600A

2000A

40

400A

630A

800A

1000A

1250A

1600A

2000A

50

400A

630A

800A

1000A

1250A

1600A

2000A

60

400A

630A

800A

1000A

1250A

1600A

2000A

Note: 2500A and above will be derated by a factor of 0.9. 4000A in 6300A will not be derated.

△ M-type intelligent overcurrent controller protection characteristics and functions:

△ Overcurrent controller protection characteristics

△ The controller setting value lr (l/ln) and error are shown in Table 4.

Long delay Ir1

Short delay time

Instantaneous

Ground fault

Ir2

Error

Ir3

Error

Ir4

Error

(0.4—1)In

(0.4—15)In



±10%



In-50kAInm=2000A) In-75kAInm=3200A)

±15%




±10%



Note: When three-stage protection is required at the same time, the setting value cannot be crossed

△ The inverse time action characteristic of long-time overcurrent protection is I²Tι=1.5Ir1²tL. The action time of (1.05~2.0)Ir1 is shown in Table 5. The time error is ±15%.

1.05Ir1

1.3Ir1

1.5Ir1

15

30

60

120

240

480

> 2hours no action

<1hour Action

2.0Ir1 Setting time S

8.4

16.9

33.7

67.5

135

270

Note: tL- setting time of long delay 1.5Ir1, Tι- action time of long delay.

△ Short-time delay overcurrent protection characteristics

The short-time delay overcurrent protection is a fixed-time characteristic. If the low multiple is required to be an inverse time characteristic, its characteristic is as follows: I²Ts= (4Ir1)²tS, where tS is the general delay design time and Ts is the short-time delay action time; When the overload current >4Ir1, it automatically converts to a fixed-time characteristic. Its fixed-time characteristic is shown in Table 6. The time error is ±15%.

Delay time(S)

Return time(S)

0.1

0.2

0.3

0.4

0.6

0.14

0.23

0.45


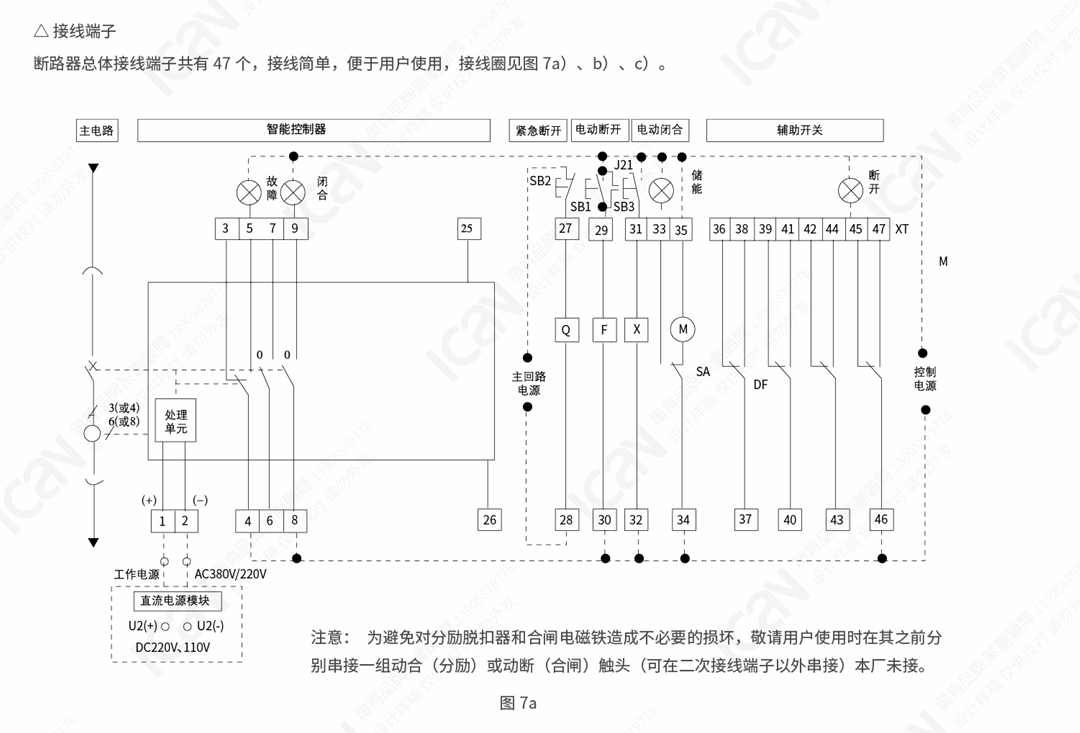

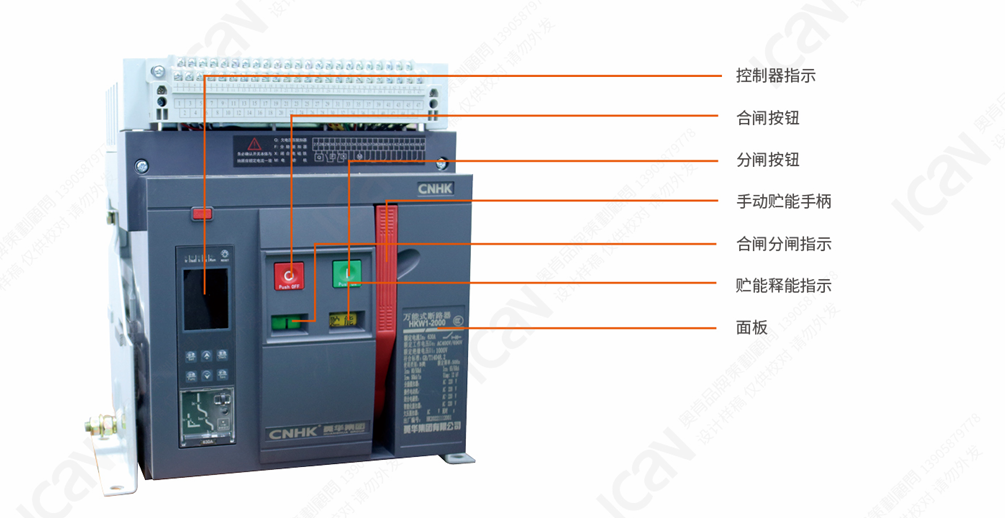

Structural characteristics

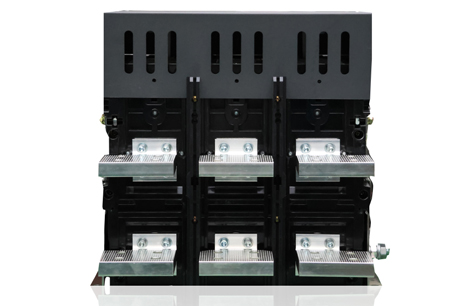

Fixed circuit breakers are mainly composed of contact systems, intelligent controllers, manual operating mechanisms, electric operating mechanisms, and mounting plates; drawer-type circuit breakers are mainly composed of contact systems, intelligent controllers, manual operating mechanisms, electric operating mechanisms, and drawer seats. The circuit breaker is in a three-dimensional layout, with the characteristics of compact structure and small size. The contact system is enclosed in an insulating bottom plate, and each phase contact is separated by an insulating plate to form a small chamber, while the intelligent controller, manual operating mechanism, and electric operating mechanism are arranged in front of it in sequence to form independent units. If one of the units is broken, it can be completely removed and replaced with a new one.

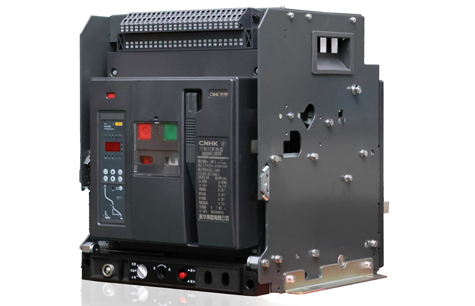

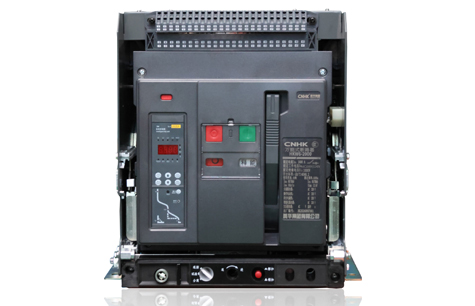

The drawer-type circuit breaker consists of an insert circuit breaker and a drawer seat. The guide rails in the drawer seat can be pushed in and out, and the insert circuit breaker seat is placed on the guide rails to enter and exit the drawer, and the main circuit is connected by inserting the busbar on the insert circuit breaker and the bridge contact on the drawer seat. The drawer-type circuit breaker has three working positions: "connected", "test" and "disconnected". The position change is achieved by rotating the handle in or out, and the three positions are indicated by the pointer on the crossbeam of the drawer base.

When in the "connected" position, both the main circuit and the secondary circuit are connected. When in the "test" position, the main circuit is disconnected and separated by an insulating partition. Only the secondary circuit is connected, and some necessary action tests can be performed; when in the "disconnected" position, the main circuit and the secondary circuit are completely disconnected. In addition, the drawer-type circuit breaker has a mechanical interlocking device. The circuit breaker can only be closed in the connected position or the test position, and the circuit breaker cannot be closed in the middle position between the connection and the test.
