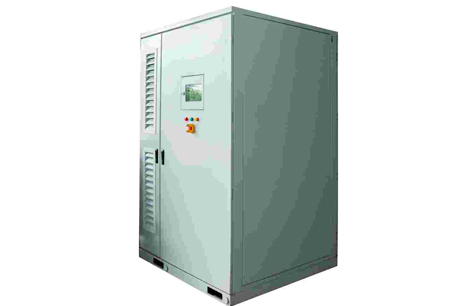

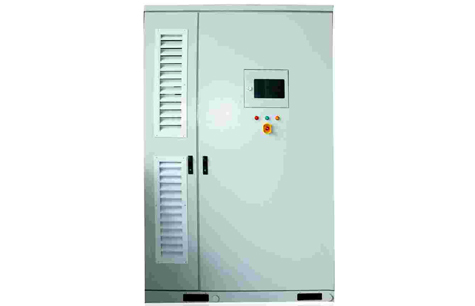

Energy storage switchgear YX-ESS215

Application scenarios

Distributed energy stations, industrial and commercial energy storage, photovoltaic storage and charging integration, microgrids, power grid energy storage, emergency power supply systems, etc.

Ultimate safety

Adopting the industry's unique "6S+EDR" innovative system solution, integrating AI active warning, fault recording, efficient isolation and fire protection and other safety technologies, truly achieving ultimate safety

Economical and efficient

Highly integrated PACK design, battery cycle life 6000 times, excellent charging and discharging efficiency and performance, achieving efficient utilization of the entire life cycle, and deeply mining the overall benefits of the system.

Flexible deployment

The standard modular design allows for easy decentralized deployment, flexible access, combined capacity expansion, and up to 20 units in parallel to meet the personalized needs of customers.

Intelligent operation and maintenance

The independently developed intelligent grid energy management system monitors and stores operation data in real time, supports multiple operation and maintenance management such as remote control and remote OTA upgrade, and greatly improves operation and maintenance efficiency.


  • Usage environment

  • Model and meaning

Technical Parameter

Specifications

IDPSI00-100/215-AC

AC side parameters


Rated grid power

100kW

AC access method

3/N/PE

Grid voltage range

-10%~+15%

Current total harmonic distortion rate

≤3% full load

Power factor

-0.98~+0.98

DC side parameters


Installed energy

215.04kW

Rated voltage

DC 672V~876V

DC maximum current

150A

Maximum DC power

100kW

System parameters


Energy efficiency

≥86%

≥88%

Working environment temperature

-20℃~+45℃

Allowable relative humidity

≤95%, No condensation

Noise

75%dB

Cooling method

/

Inverter liquid cooling

Fire protection system

Automatic fire fighting system, perfluorohexanone/aerosol optional

Protection level

IP55

Altitude

≤2000m, more than 2000m need to be derated

Weight

3t

Communication interface

4GLANEthercatRS485

Communication protocol

MQTT,MODBUS TCP,MODBUS RTU,IEC 104


Structural characteristics
Structural diagram
Configuration diagram
